Passenger CCS Cushion Warmer (With CCS) Connector End View (S26)

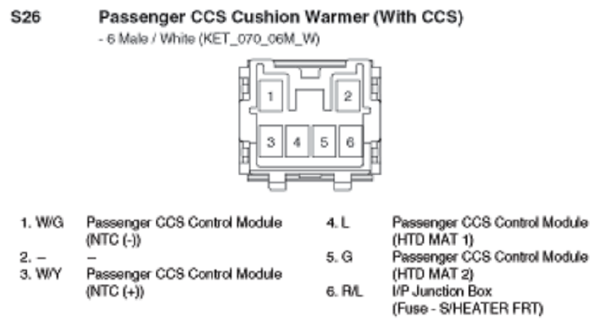

Fig 1: Passenger CCS Cushion Warmer (With CCS) Connector End View (S26)
G10798487Courtesy of KIA MOTORS AMERICA, INC.
