Passenger CCS Control Module (With CCS) Connector End View (S25)

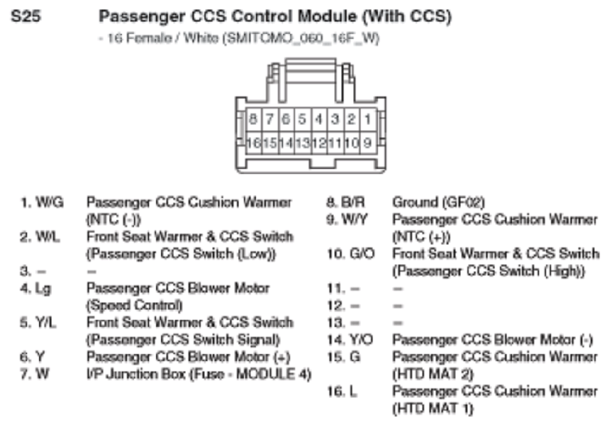

Fig 1: Passenger CCS Control Module (With CCS) Connector End View (S25)

G10798486

Courtesy of KIA MOTORS AMERICA, INC.
