Home >> Kia >> 2013 >> Optima SX >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views (Seat Harness) - 2.0L - Except HEV (USA) >> Connector End Views >> Driver Slide Motor Connector End View (S07)

Driver Slide Motor Connector End View (S07)

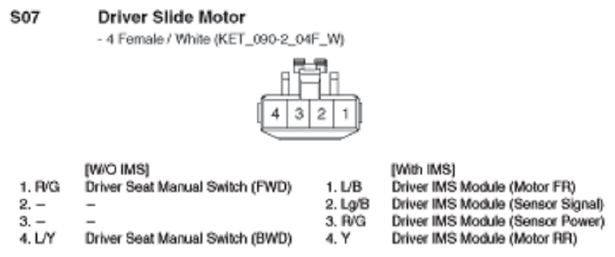

Fig 1: Driver Slide Motor Connector End View (S07)

G10798476

Courtesy of KIA MOTORS AMERICA, INC.
