Driver Seat Manual Switch (With IMS) Connector End View (S02)

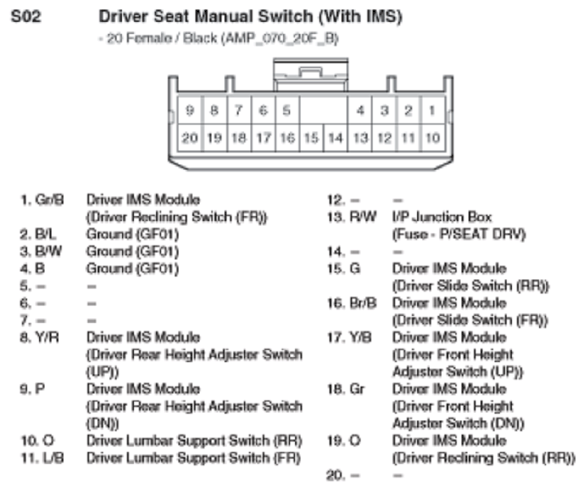

Fig 1: Driver Seat Manual Switch (With IMS) Connector End View (S02)

G10798468

Courtesy of KIA MOTORS AMERICA, INC.
