Driver Lumbar Support Switch Connector End View (S14)

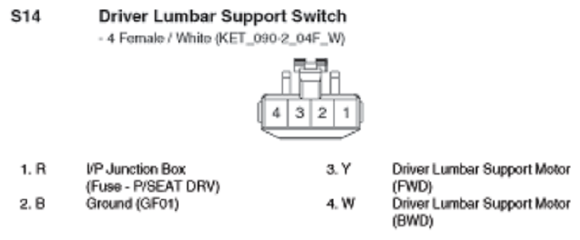

Fig 1: Driver Lumbar Support Switch Connector End View (S14)

G10798482

Courtesy of KIA MOTORS AMERICA, INC.
