Driver Front Height Adjuster Motor Connector End View (S05)

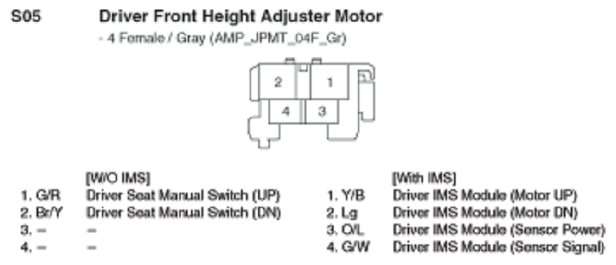

Fig 1: Driver Front Height Adjuster Motor Connector End View (S05)

G10798474

Courtesy of KIA MOTORS AMERICA, INC.
