Driver Cushion Warmer Connector End View (S09)

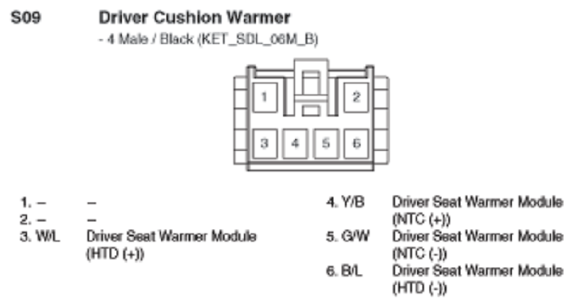

Fig 1: Driver Cushion Warmer Connector End View (S09)

G10798478

Courtesy of KIA MOTORS AMERICA, INC.
