Driver CCS Control Module (With CCS) Connector End View (S11)

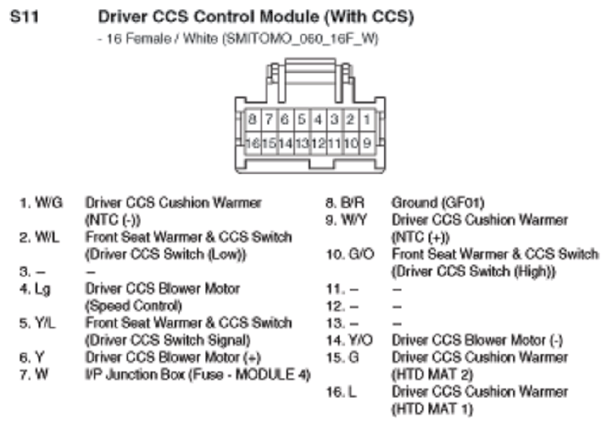

Fig 1: Driver CCS Control Module (With CCS) Connector End View (S11)

G10798479

Courtesy of KIA MOTORS AMERICA, INC.
