Driver CCS Blower Motor (With CCS) Connector End View (S13)

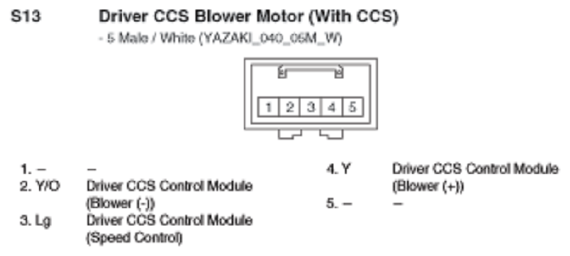

Fig 1: Driver CCS Blower Motor (With CCS) Connector End View (S13)

G10798481

Courtesy of KIA MOTORS AMERICA, INC.
