Trunk Room Lamp Connector End View (F36)

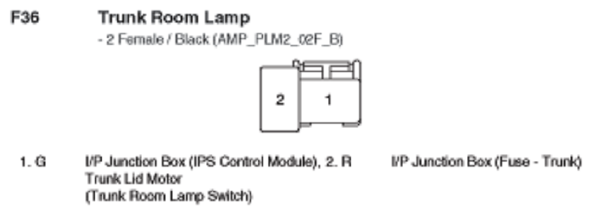

Fig 1: Trunk Room Lamp Connector End View (F36)

G10798400

Courtesy of KIA MOTORS AMERICA, INC.
