Rear Seat Warmer Relay RH Connector End View (F51)

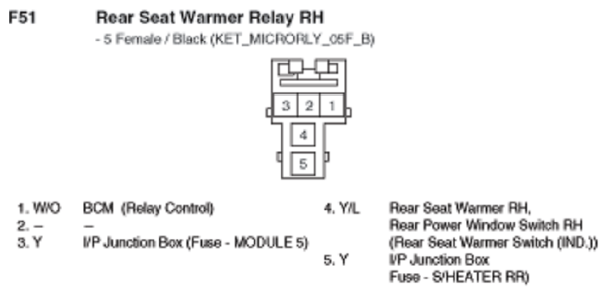

Fig 1: Rear Seat Warmer Relay RH Connector End View (F51)

G10798409

Courtesy of KIA MOTORS AMERICA, INC.
