Rear Seat Warmer Relay LH Connector End View (F50)

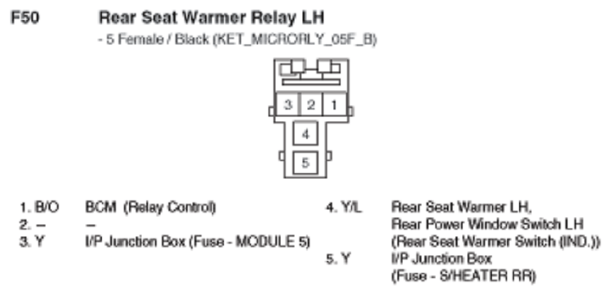

Fig 1: Rear Seat Warmer Relay LH Connector End View (F50)

G10798408

Courtesy of KIA MOTORS AMERICA, INC.
