Rear Seat Warmer RH Connector End View (F24)

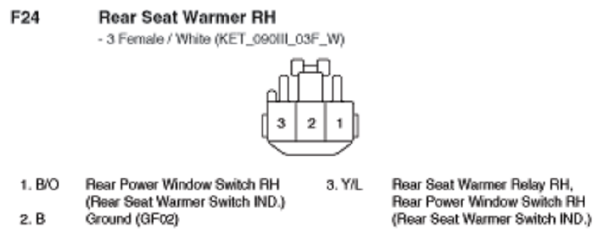

Fig 1: Rear Seat Warmer RH Connector End View (F24)

G10798388

Courtesy of KIA MOTORS AMERICA, INC.
