Rear Seat Warmer LH Connector End View (F23)

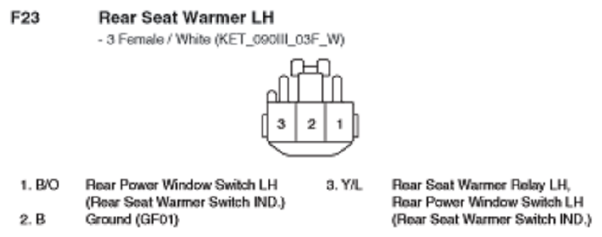

Fig 1: Rear Seat Warmer LH Connector End View (F23)

G10798387

Courtesy of KIA MOTORS AMERICA, INC.
