Passenger Seat Belt Buckle Switch Connector End View (F61)

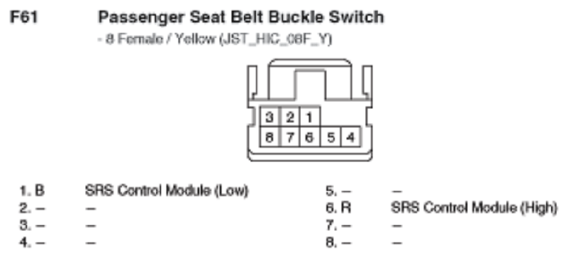

Fig 1: Passenger Seat Belt Buckle Switch Connector End View (F61)

G10798416

Courtesy of KIA MOTORS AMERICA, INC.
