Fuel Sender & Fuel Pump Motor Connector End View (F35)

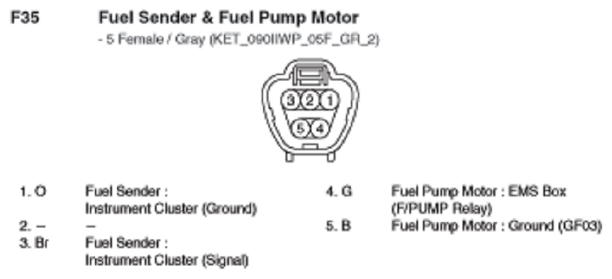

Fig 1: Fuel Sender & Fuel Pump Motor Connector End View (F35)

G10798399

Courtesy of KIA MOTORS AMERICA, INC.
