Electric Parking Brake Module Connector End View (F68)

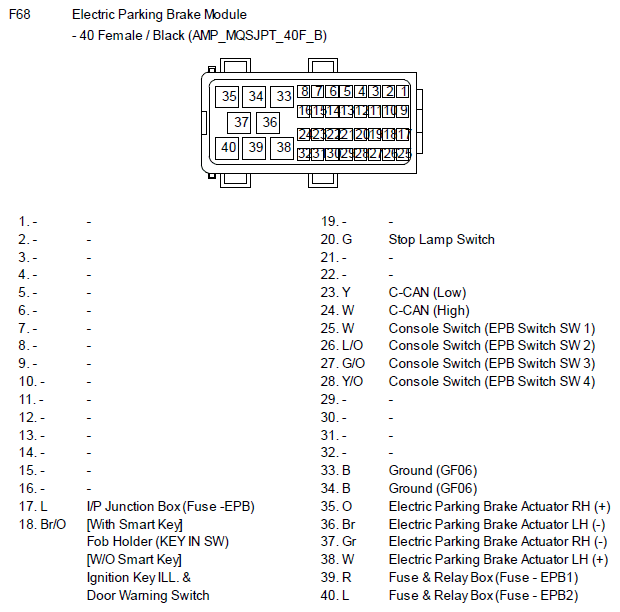

Fig 1: Electric Parking Brake Module Connector End View (F68)

G10798421

Courtesy of KIA MOTORS AMERICA, INC.
