Driver Side Impact Sensor Connector End View (F07)

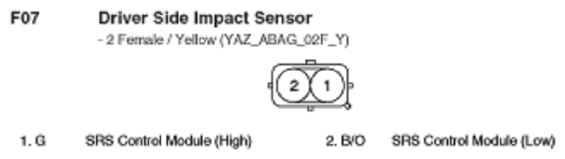

Fig 1: Driver Side Impact Sensor Connector End View (F07)

G10798374

Courtesy of KIA MOTORS AMERICA, INC.
