Home >> Kia >> 2013 >> Optima SX >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views (Floor Harness) - 2.0L - Except HEV (USA) >> Connector End Views >> Driver Seat Belt Buckle Switch Connector End View (F60)

Driver Seat Belt Buckle Switch Connector End View (F60)

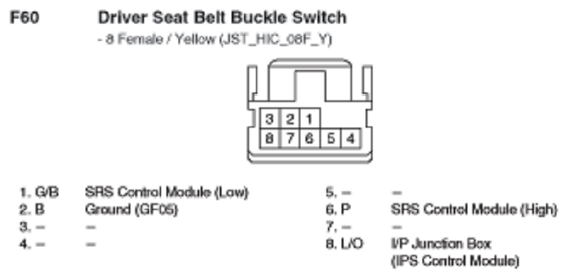

Fig 1: Driver Seat Belt Buckle Switch Connector End View (F60)

G10798415

Courtesy of KIA MOTORS AMERICA, INC.
