Home >> Kia >> 2013 >> Optima SX >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views (Floor Harness) - 2.0L - Except HEV (USA) >> Connector End Views >> Driver Door Scuff Lamp Connector End View (F46)

Driver Door Scuff Lamp Connector End View (F46)

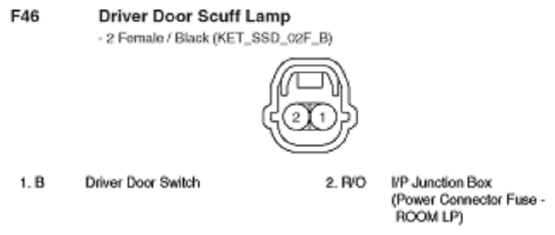

Fig 1: Driver Door Scuff Lamp Connector End View (F46)

G10798406

Courtesy of KIA MOTORS AMERICA, INC.
