Driver Front Impact Sensor Connector End View (E50)

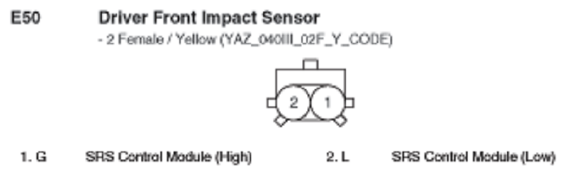

Fig 1: Driver Front Impact Sensor Connector End View (E50)

G10798325

Courtesy of KIA MOTORS AMERICA, INC.
