Rear Power Window Switch RH (W/O Seat Warmer) Connector End View (D52)

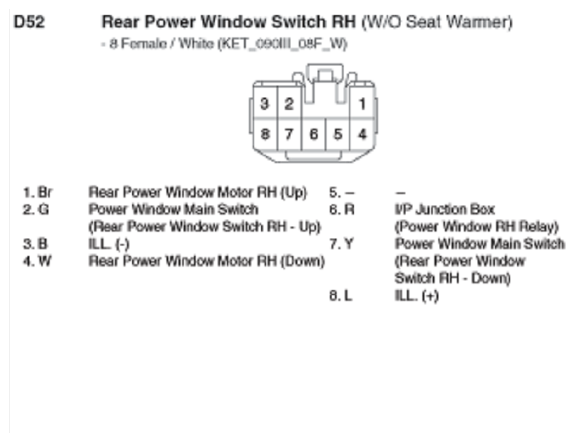

Fig 1: Rear Power Window Switch RH (W/O Seat Warmer) Connector End View (D52)

G10798447

Courtesy of KIA MOTORS AMERICA, INC.
