Rear Power Window Switch LH (W/O Seat Warmer) Connector End View (D42)

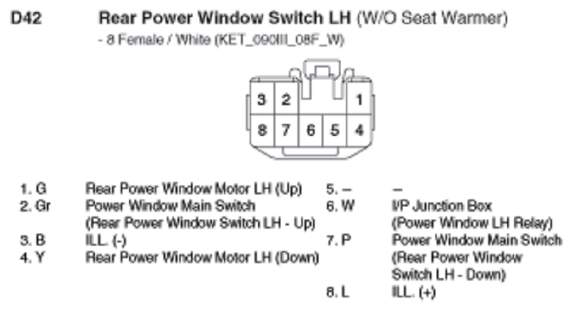

Fig 1: Rear Power Window Switch LH (W/O Seat Warmer) Connector End View (D42)

G10798442

Courtesy of KIA MOTORS AMERICA, INC.
