Home >> Kia >> 2013 >> Optima SX >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views (Door Harness) - 2.0L - Except HEV (USA) >> Connector End Views >> Rear Power Window Motor LH Connector End View (D44)

Rear Power Window Motor LH Connector End View (D44)

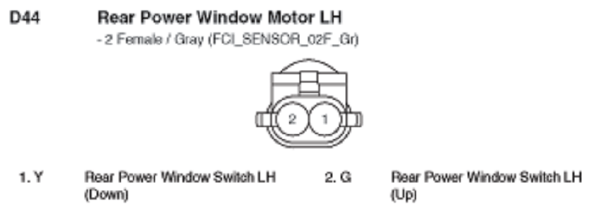

Fig 1: Rear Power Window Motor LH Connector End View (D44)

G10798444

Courtesy of KIA MOTORS AMERICA, INC.
