Rear Door Speaker LH Connector End View (D43)

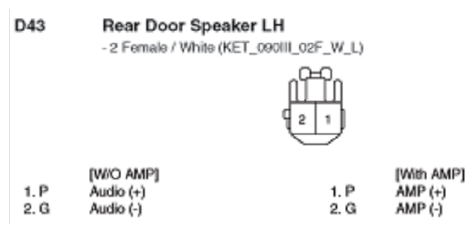

Fig 1: Rear Door Speaker LH Connector End View (D43)

G10798443

Courtesy of KIA MOTORS AMERICA, INC.
