Power Window Main Switch (W/O Passenger Safety) Connector End View (D02)

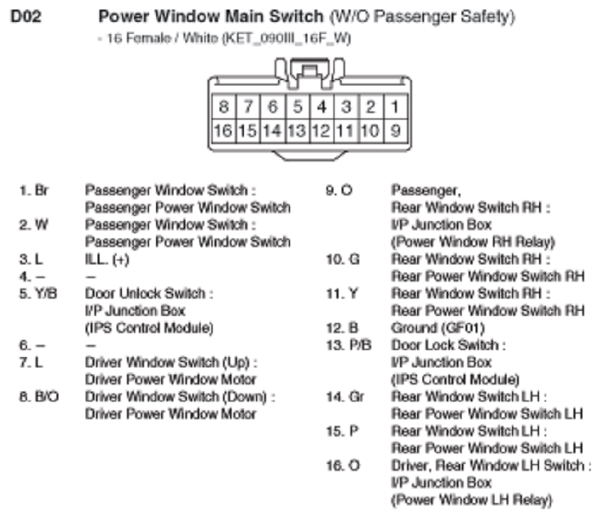

Fig 1: Power Window Main Switch (W/O Passenger Safety) Connector End View (D02)

G10798423

Courtesy of KIA MOTORS AMERICA, INC.
