Passenger Smart Key Outside Handle Connector End View (D31)

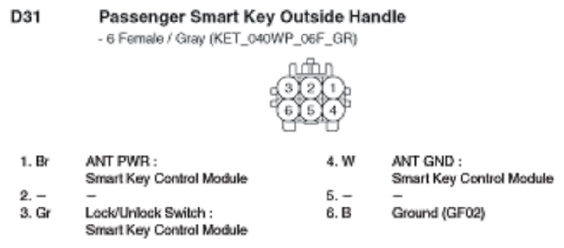

Fig 1: Passenger Smart Key Outside Handle Connector End View (D31)

G10798437

Courtesy of KIA MOTORS AMERICA, INC.
