Passenger Power Window Switch (W/O Passenger Safety Power) Connector End View (D36)

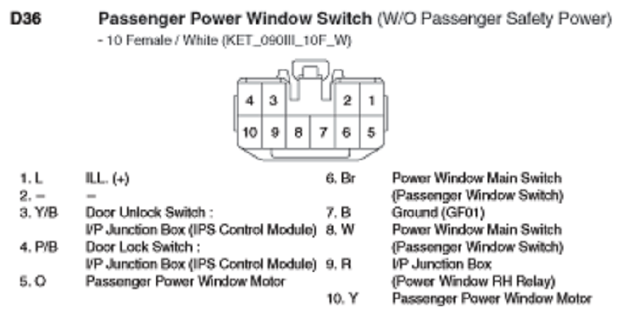

Fig 1: Passenger Power Window Switch (W/O Passenger Safety Power) Connector End View (D36)
G10798440Courtesy of KIA MOTORS AMERICA, INC.
