OEM Connector End Views (Door Harness) - 2.0L - Except HEV (USA)
>>
Connector End Views
>>
Passenger Power Outside Mirror Connector End View (D30)
Passenger Power Outside Mirror Connector End View (D30)

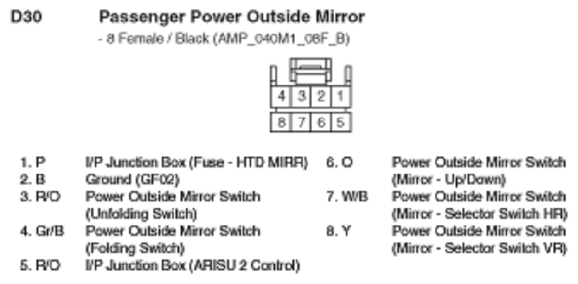

Fig 1: Passenger Power Outside Mirror Connector End View (D30)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
