Driver Pressure Side Impact Sensor Connector End View (D15)

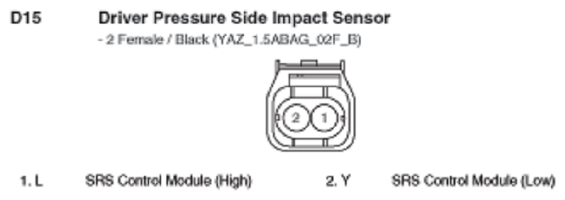

Fig 1: Driver Pressure Side Impact Sensor Connector End View (D15)

G10798430

Courtesy of KIA MOTORS AMERICA, INC.
