Driver Power Window Safety Module Connector End View (D06)

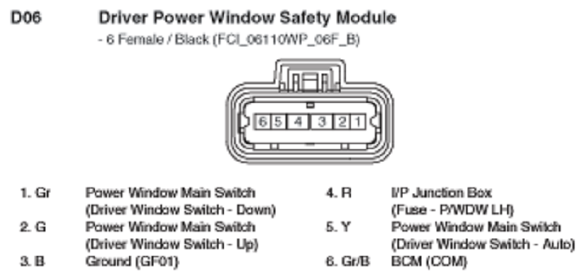

Fig 1: Driver Power Window Safety Module Connector End View (D06)

G10798426

Courtesy of KIA MOTORS AMERICA, INC.
