Driver Power Window Motor Connector End View (D04)

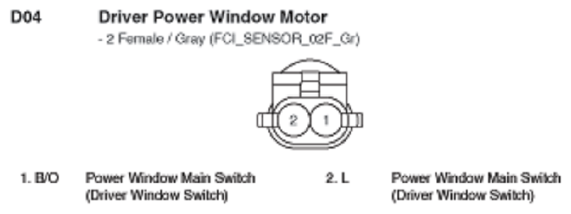

Fig 1: Driver Power Window Motor Connector End View (D04)

G10798425

Courtesy of KIA MOTORS AMERICA, INC.
