Home >> Kia >> 2013 >> Optima SX >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views (Door Harness) - 2.0L - Except HEV (USA) >> Connector End Views >> Driver Power Outside Mirror Connector End View (D10)

Driver Power Outside Mirror Connector End View (D10)

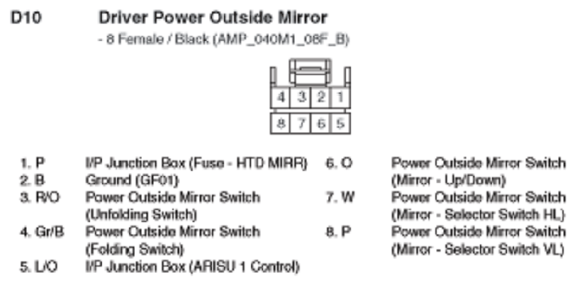

Fig 1: Driver Power Outside Mirror Connector End View (D10)

G10798428

Courtesy of KIA MOTORS AMERICA, INC.
