Home >> Kia >> 2013 >> Optima SX >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views (Door Harness) - 2.0L - Except HEV (USA) >> Connector End Views >> Driver Door Speaker Connector End View (D03)

Driver Door Speaker Connector End View (D03)

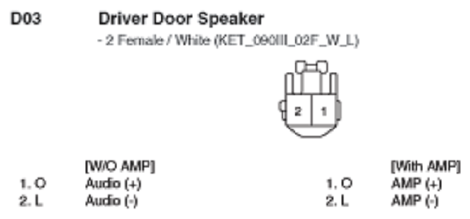

Fig 1: Driver Door Speaker Connector End View (D03)

G10798424

Courtesy of KIA MOTORS AMERICA, INC.
