OEM Connector End Views (Joint Connectors) -- Optima 2.4L TF (KOREA)
>>
Connector End Views
>>
Joint Connector End View (JS01)
Joint Connector End View (JS01)

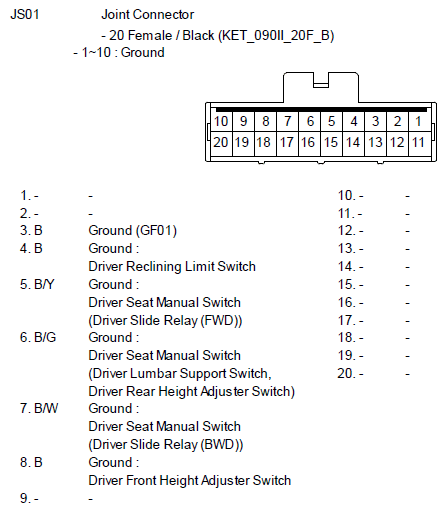

Fig 1: Joint Connector End View (JS01)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
