Glove Box Replacement

Crash pad side cover (A).

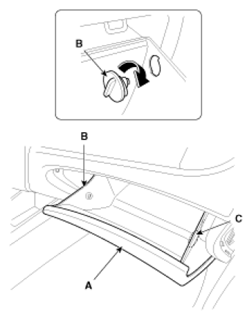

Fig 1: Crash Pad Side Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the damper (B) from the glove box (A).
Disconnect the damper (C).

Fig 2: Identifying Damper & Glove Box
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the pin (A), then remove the glove box (B).

Fig 3: Pin & Glove Box
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the glove box housing (A).

Fig 4: Glove Box Housing & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
