Heated Glass Element Switch: Testing and Inspection

Inspection

1. Disconnect the negative (-) battery terminal.
2. Remove the center facia panel after removing upper tray. Take care not to damage fixing clips.

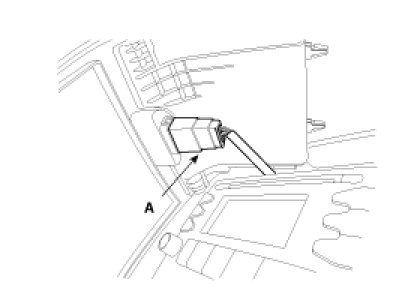

3. Disconnect hazard lamp connector (A).

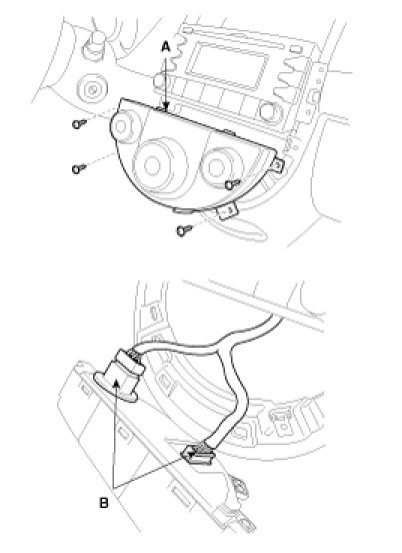

4. Remove the heater control unit (A) after removing the screws (4EA) and connector (B).

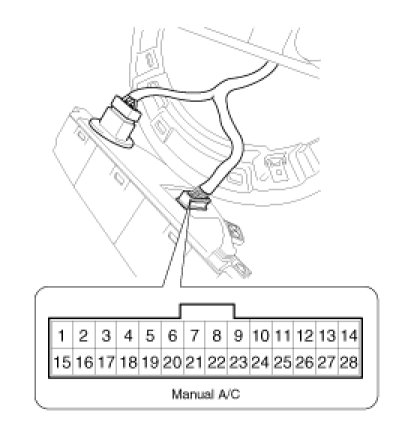

5. Using an ohmmeter, inspect the continuity between the terminals after removing controller.
