Diagram Set SD925 (Turn & Hazard Lamps)
Diagram Set SD925 (Turn & Hazard Lamps)

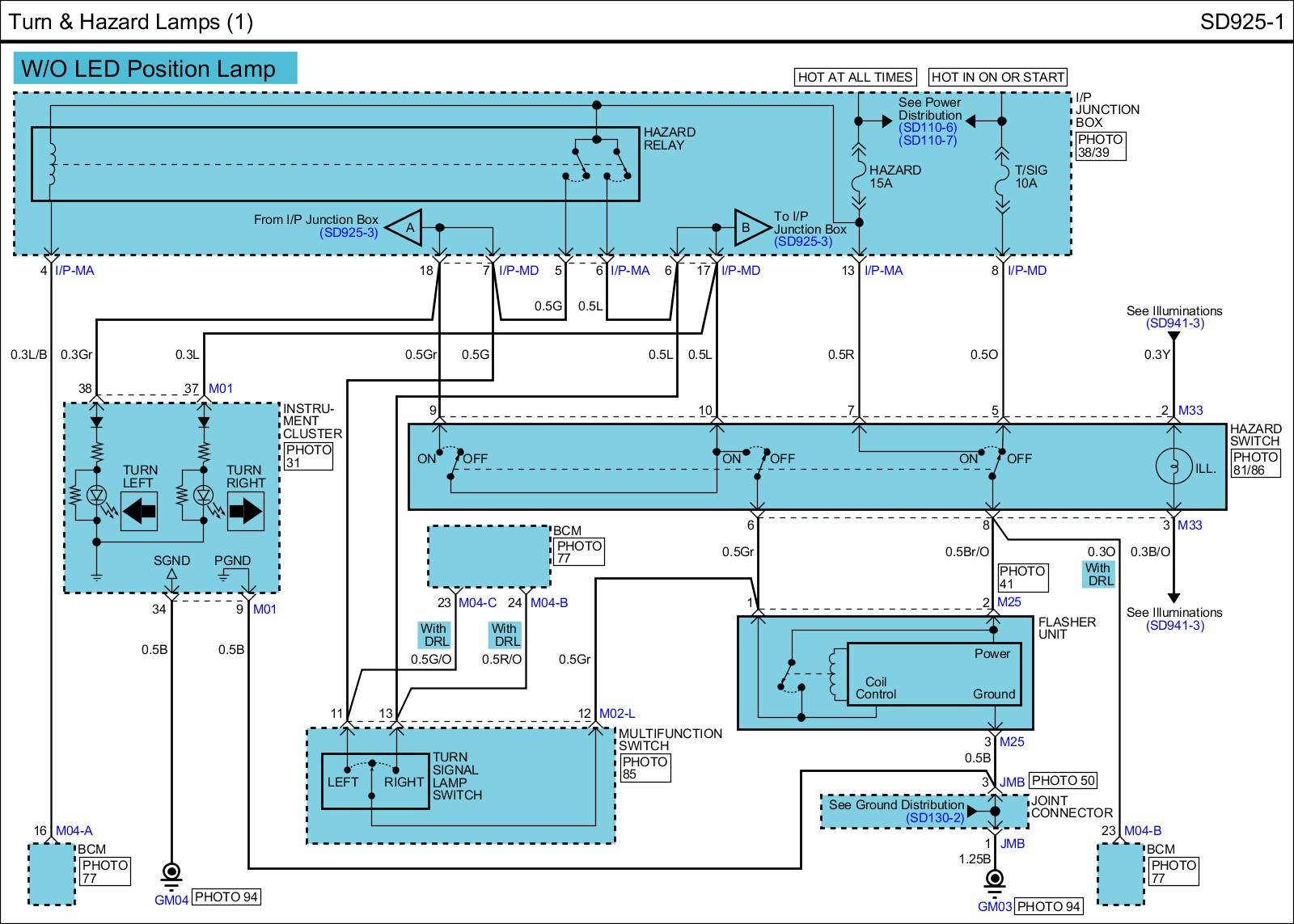

SD925-1 Turn & Hazard Lamps (1):

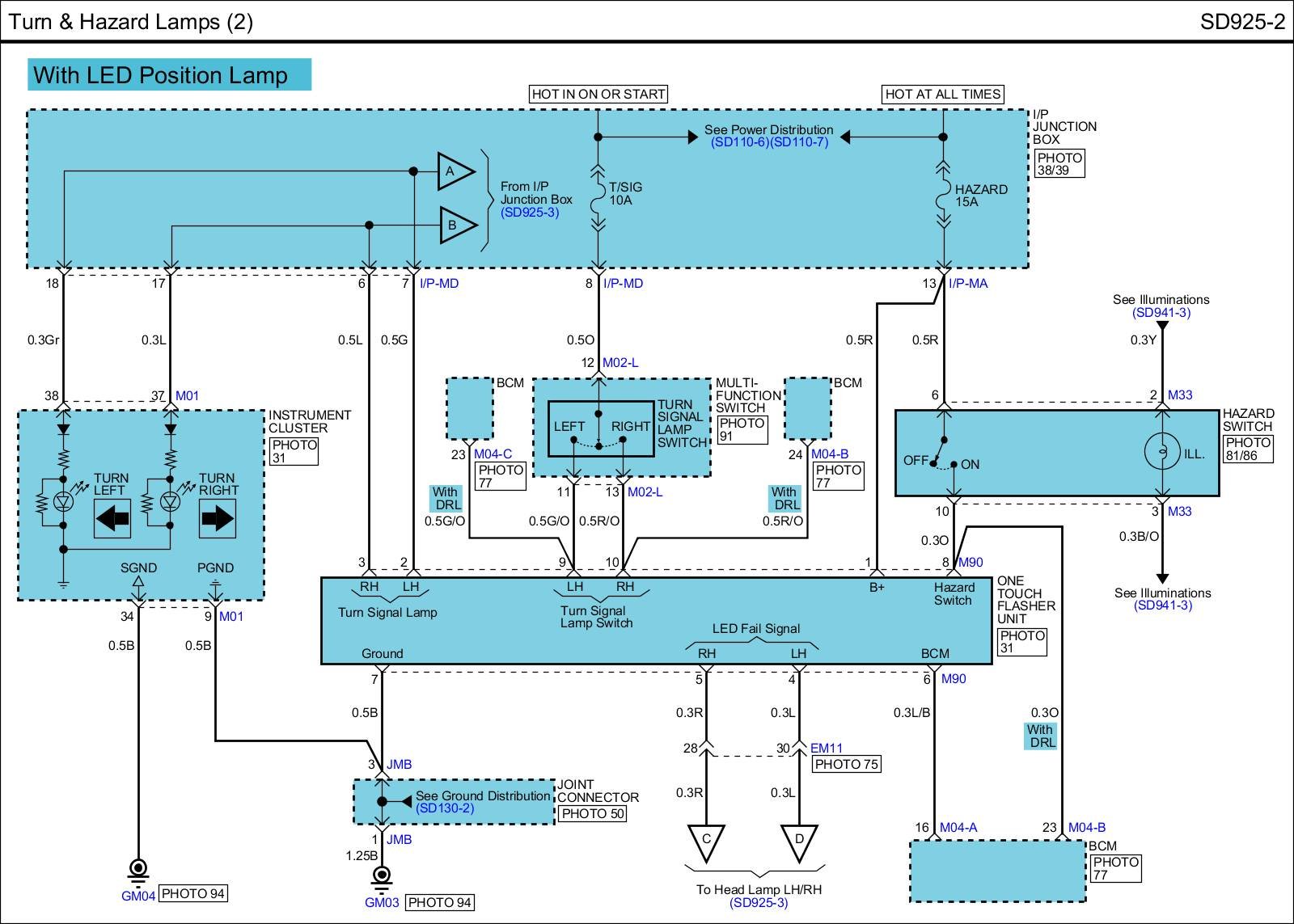

SD925-2 Turn & Hazard Lamps (2):

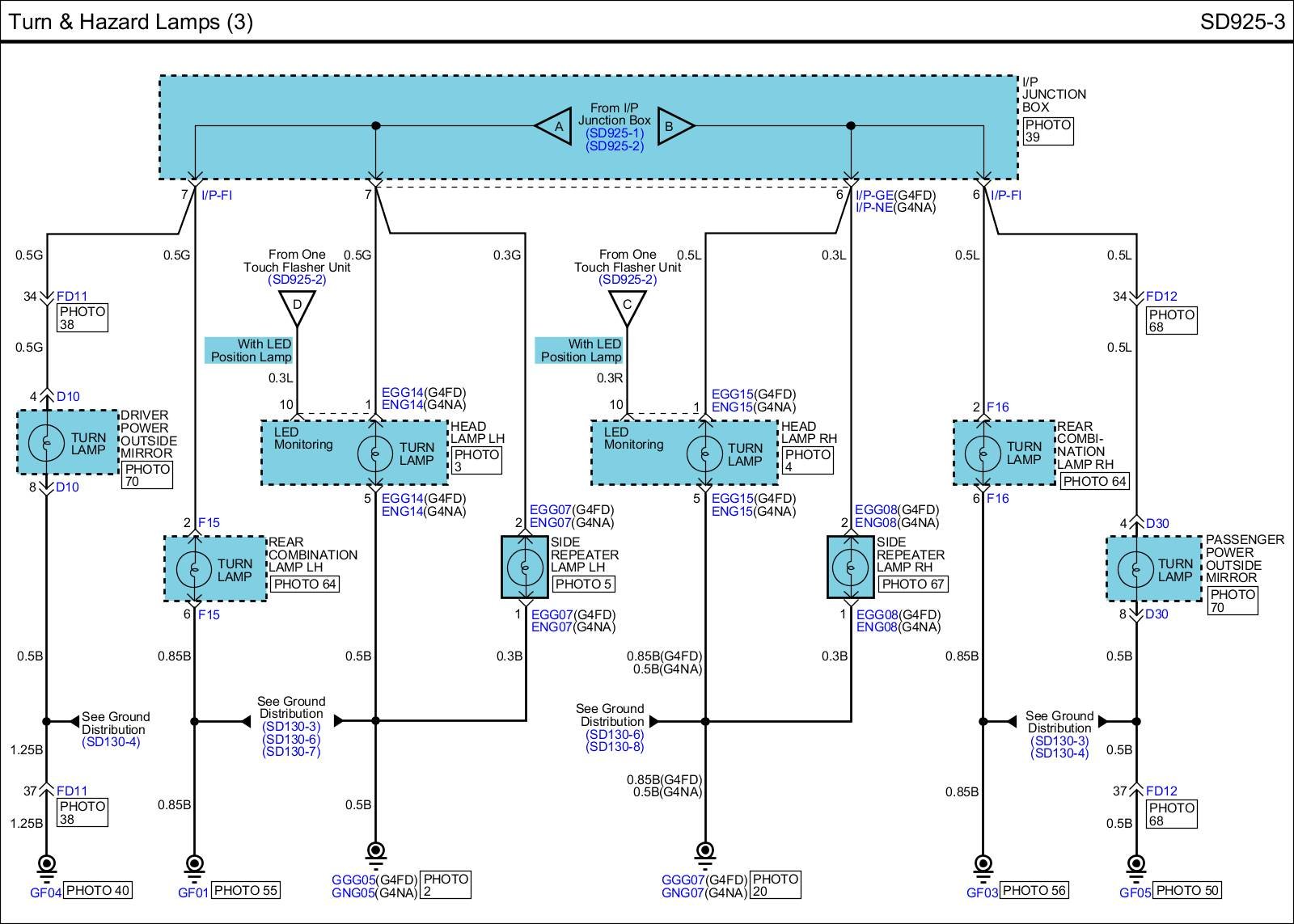

SD925-3 Turn & Hazard Lamps (3):
