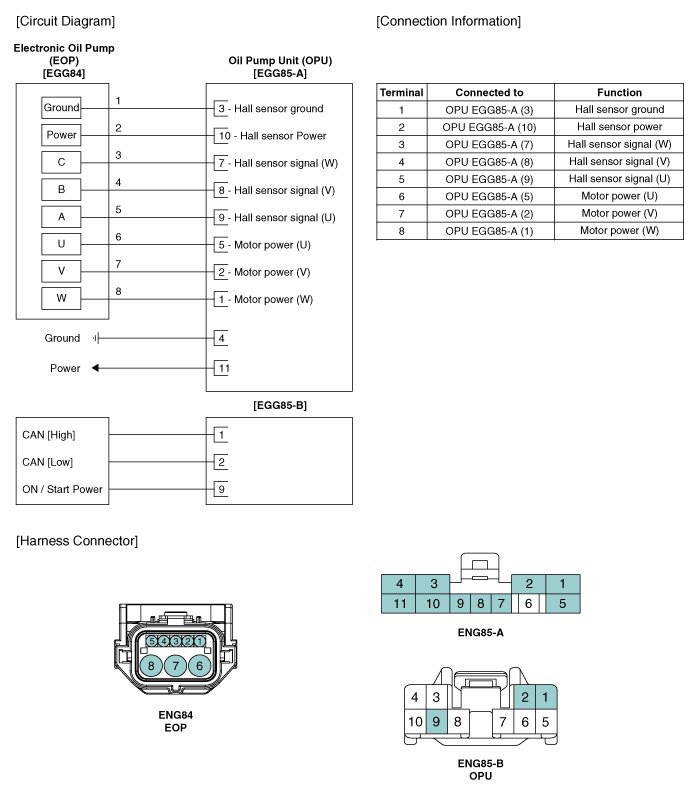

Home >> Kia >> 2012 >> Soul L4-1.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Relays and Modules - Transmission and Drivetrain >> Relays and Modules - A/T >> Control Module >> Diagrams >> Electrical Diagrams >> Oil Pump Unit (OPU)
