Cowl Top Cover Replacement

  1. Remove the wiper (A).

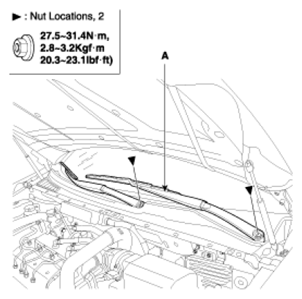

    Fig 1: Wiper With Torque Specifications
    G07395872Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the hood seal weather strip.
  3. Detach the clips, then remove the cowl top cover (A).

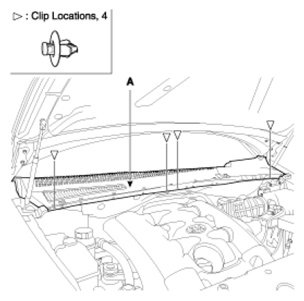

    Fig 2: Cowl Top Cover
    G07395873Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
