Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Sensors and Switches - Suspension >> Steering Angle Sensor >> Diagrams

Steering Angle Sensor: Diagrams

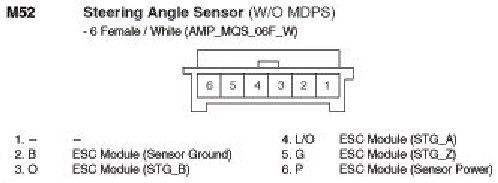

M52 Steering Angle Sensor (W/O MDPS):
