Alarm Horn Relay: Locations





Component Location









Fuse & Relay Information

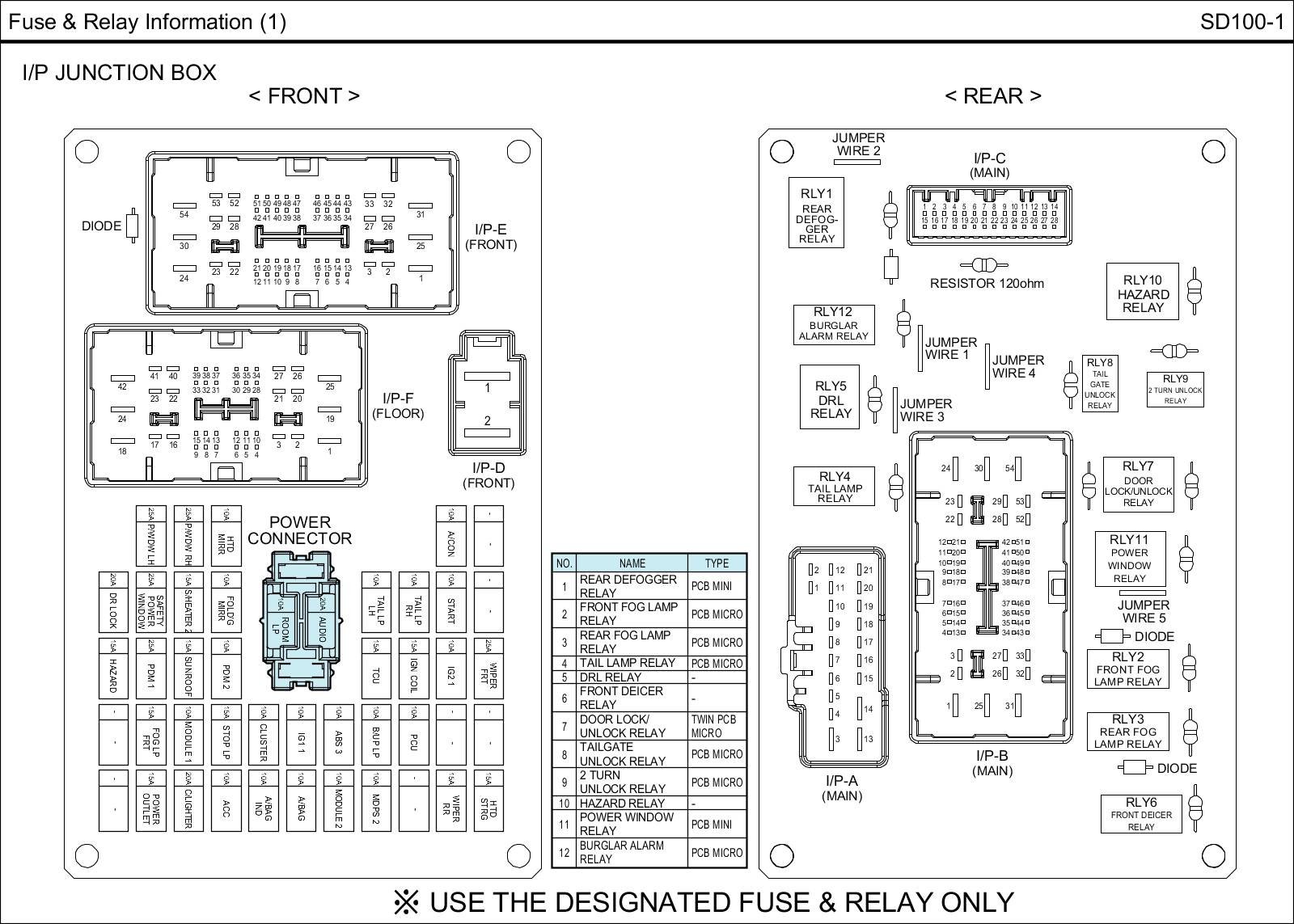

I/P Junction Box View:

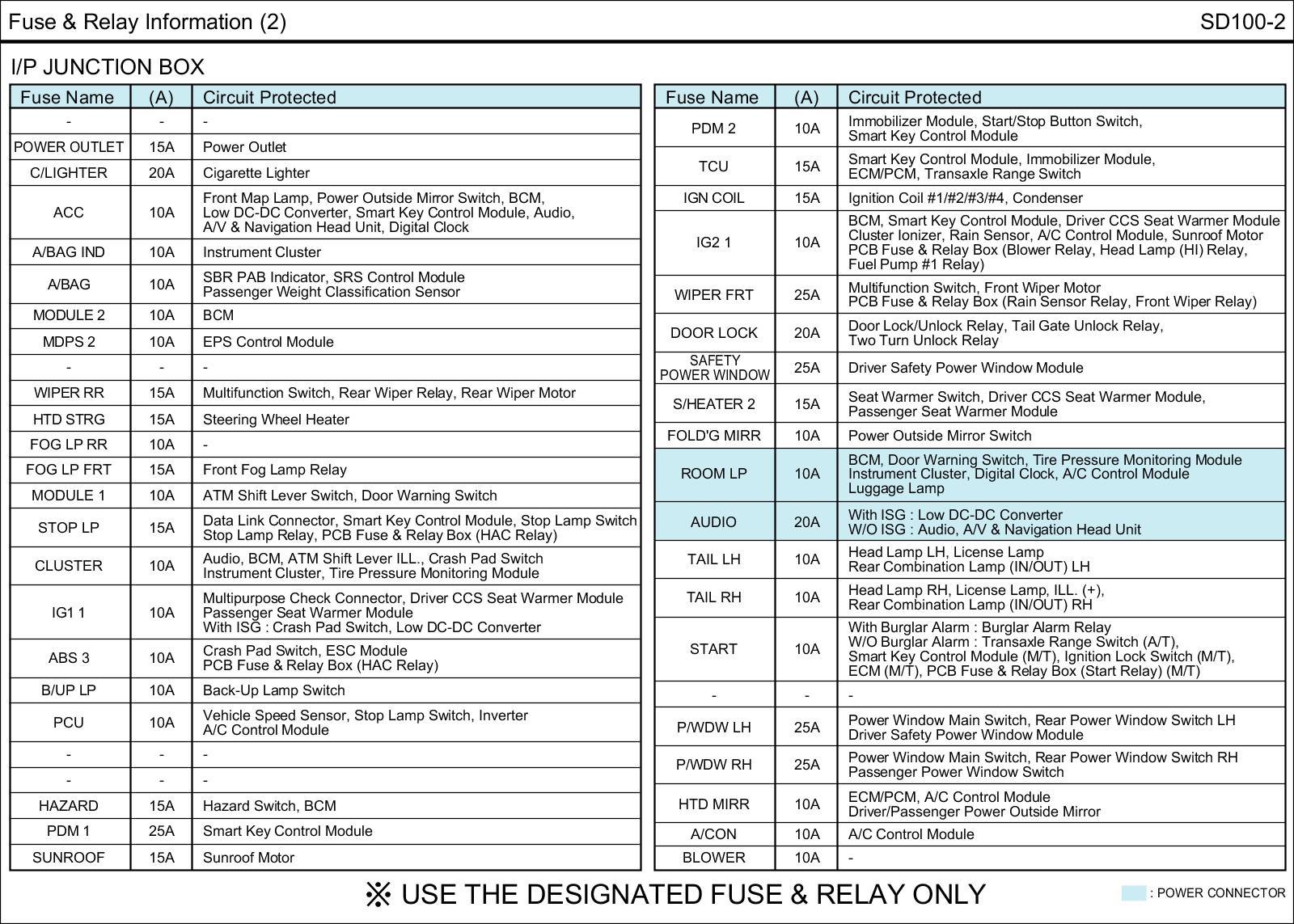

I/P Junction Box Circuit Details:

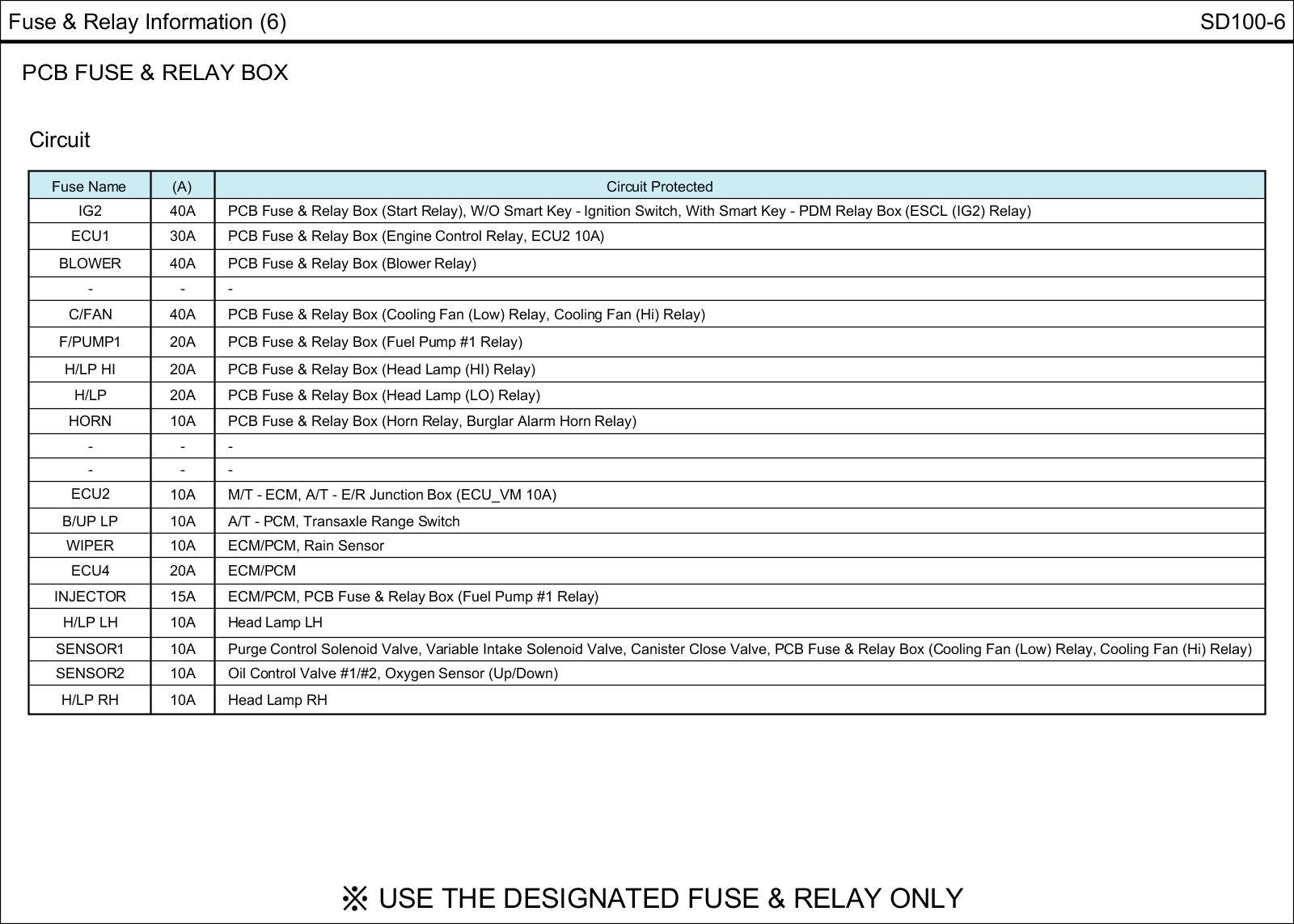

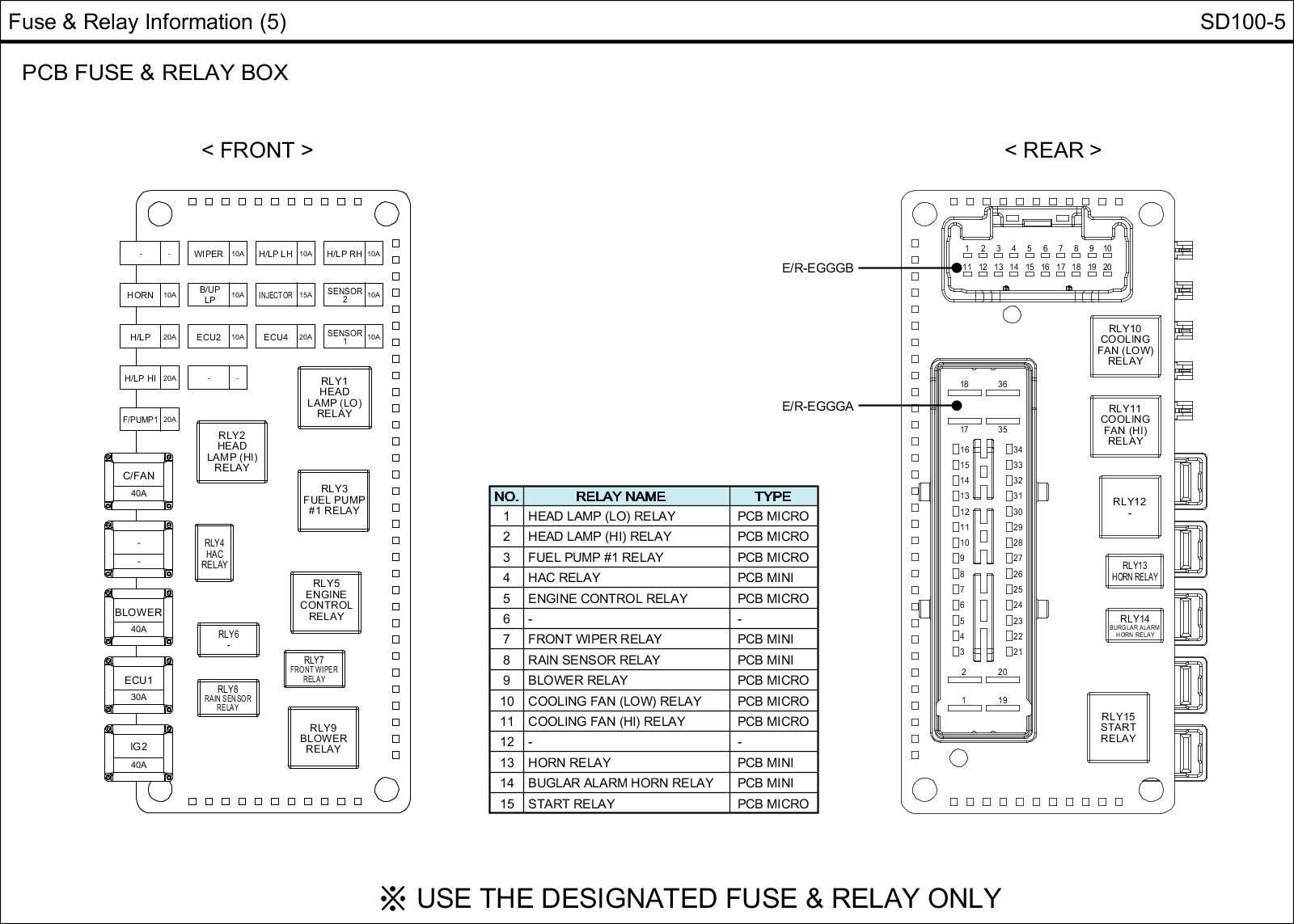

PCB Fuse & Relay Box View:

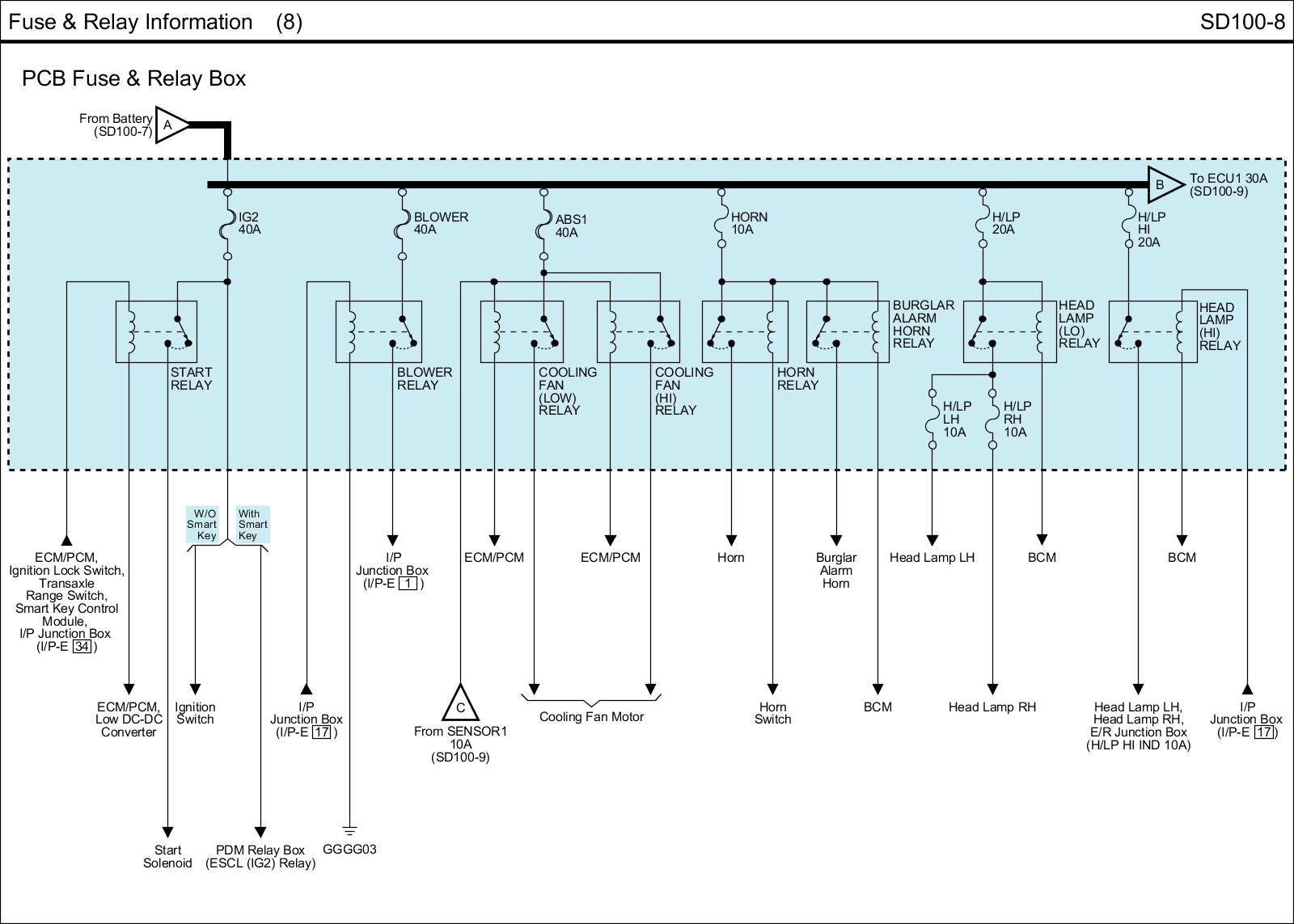

PCB Fuse & Relay Box Circuit Details:

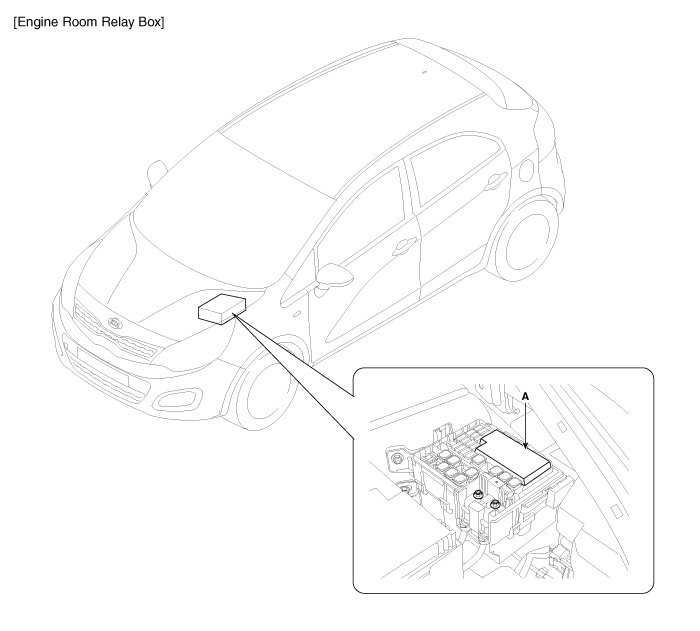

E/R Fuse & Relay Box View:
