Rear Left Turn Signal Lamp Circuit Inspection
- Check short to ground in harness
- IG "OFF", disconnect battery (-) terminal.
- Disconnect SJB, Rear Left Turn Signal Lamp connector.
- Measure resistance between the Rear Left turn signal lamp terminal of SJB harness connector and chassis ground.
Specification : Infinity
For 2012

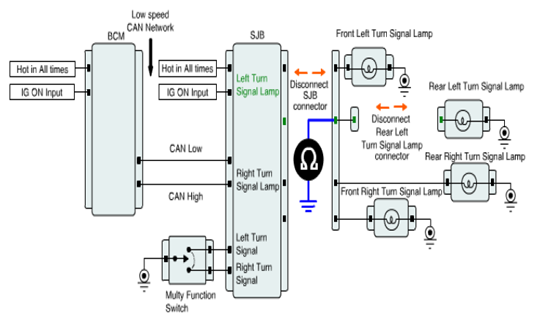

Fig 1: Measuring Resistance Between Rear Left Turn Signal Lamp Terminal Of SJB Harness Connector & Chassis GroundCourtesy of KIA MOTORS AMERICA, INC.
For 2013 refer to ETM
- Is the measured resistance within specification?
YES
- Substitute with a known - good SJB and check for proper operation.
If the problem is corrected, replace the SJB and go to VERIFICATION OF VEHICLE REPAIR procedure.
NO
- Repair short to ground in circuit of Rear Left Turn Signal Lamp, and go to VERIFICATION OF VEHICLE REPAIR procedure.
- Substitute with a known - good SJB and check for proper operation.
