DTC B2514: External Tail Lamp RH Circuit Short To Ground: ETM

Fig 1: Tail, Parking & License Lamps (1 of 2)

Courtesy of KIA MOTORS AMERICA, INC.

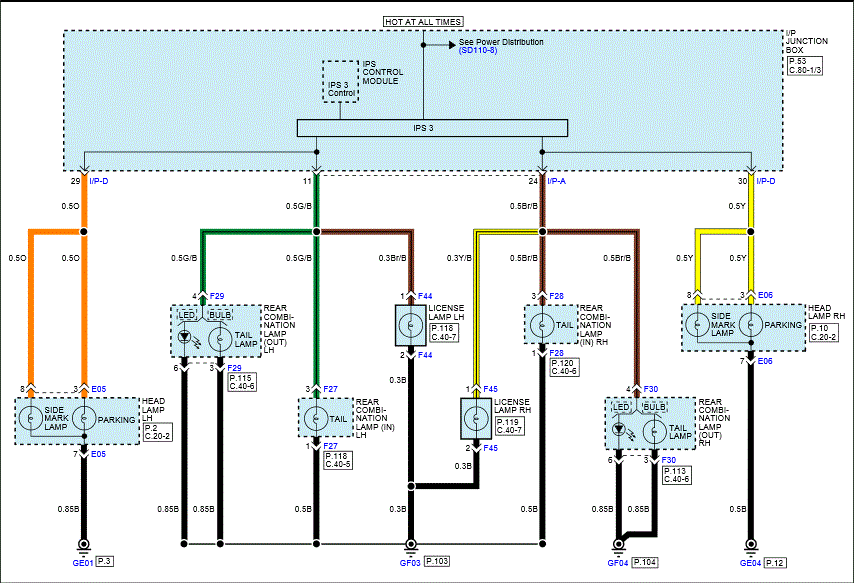

Fig 2: Tail, Parking & License Lamps (2 of 2)

Courtesy of KIA MOTORS AMERICA, INC.
