Right Head lamp Low Circuit Inspection

Check short to ground in harness
1. IG "OFF", disconnect battery (-) terminal.
2. Disconnect SJB, Right Head lamp Low connector.
3. Measure resistance between the Right Head lamp Low terminal of SJB harness connector and chassis ground.
  Specification: infinity

  For 2012

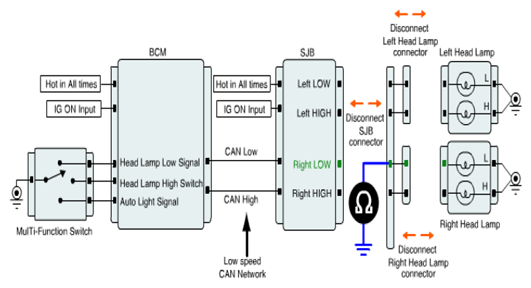

  Fig 1: Measuring Resistance Between Right Head Lamp Low Terminal Of SJB Harness Connector & Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 2: Head Lamp Switch Connector End View
  Courtesy of KIA MOTORS AMERICA, INC.

  For 2013 refer to ETM
4. Is the measured resistance within specification?
  YES
  - Substitute with a known - good SJB and check for proper operation.
    If the problem is corrected, replace the SJB and go to VERIFICATION OF VEHICLE REPAIR procedure.
  NO
  - Repair short to ground in circuit of Right Head lamp Low, and go to VERIFICATION OF VEHICLE REPAIR procedure.
