Heater Control Unit Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the crash pad side cover (A).

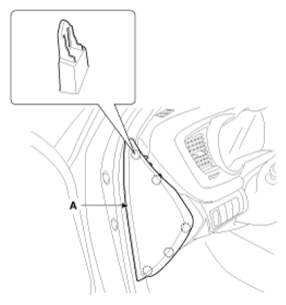

Fig 1: Crash Pad Side Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the crash pad lower panel (A).

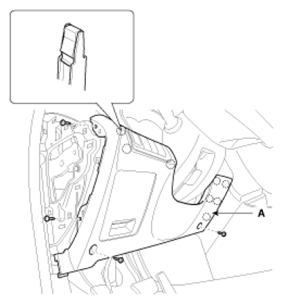

Fig 2: Crash Pad Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A).
(LH)

Fig 3: Crash Pad Lower Panel Connectors (LH)
Courtesy of KIA MOTORS AMERICA, INC.

(RH)

Fig 4: Crash Pad Lower Panel Connectors (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the crash pad garnish (RH) (A).

Fig 5: Crash Pad Garnish (RH)
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the heater control unit (A).

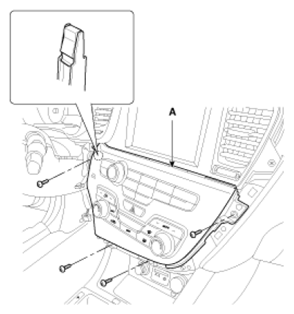

Fig 6: Heater Control Unit
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A) and hose (B).

Fig 7: Heater Control Unit Connectors & Hose
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.

NOTE:
