Glove Box Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

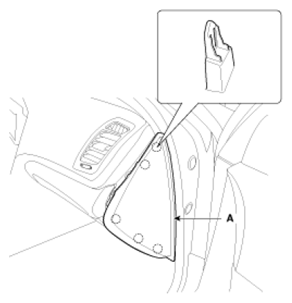

Using a screwdriver or remover, remove the crash pad side cover (A).

Fig 1: Crash Pad Side Cover (RH)
Courtesy of KIA MOTORS AMERICA, INC.

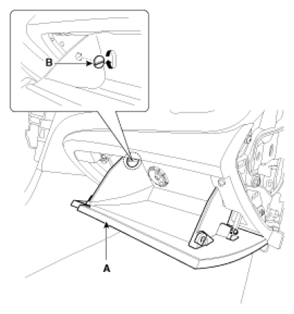

Disconnect the guide (B) from the glove box (A).

Fig 2: Glove Box & Guide
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the lift (A) from the glove box (B).

Fig 3: Lift & Glove Box
Courtesy of KIA MOTORS AMERICA, INC.

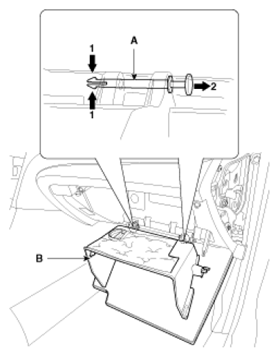

Disconnect the pin (A) and then remove the glove box (B).

Fig 4: Removing Glove Box Pin
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screw, then remove the passenger's under cover (A).

Fig 5: Passenger's Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the glove box housing (A).

Fig 6: Glove Box Housing & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A).
(LH)

Fig 7: Glove Box Connectors (LH)
Courtesy of KIA MOTORS AMERICA, INC.

(RH)

Fig 8: Glove Box Connectors (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
