Crash Pad Lower Panel Replacement

CAUTION:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Using a screwdriver or remover, remove the crash pad side cover (A).

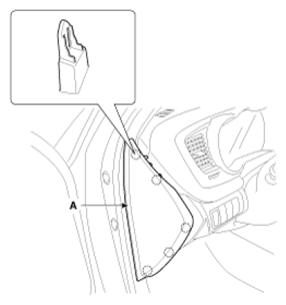

    Fig 1: Crash Pad Side Cover
    G07380328Courtesy of KIA MOTORS AMERICA, INC.
  2. After loosening the mounting screws, then remove the crash pad lower panel (A).

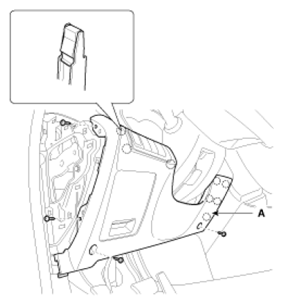

    Fig 2: Crash Pad Lower Panel
    G07380329Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connectors (A).

    (LH)

    Fig 3: Crash Pad Lower Panel Connectors (LH)
    G07380330Courtesy of KIA MOTORS AMERICA, INC.

    (RH)

    Fig 4: Crash Pad Lower Panel Connectors (RH)
    G07380331Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
NOTE:
  • Make sure the connectors are connected in properly.
  • Replace any damaged clips.
