Repair Procedures: Inspection

  1. Check the audio remote control switch for resistance between terminals in each switch position.

    Trip + Reset

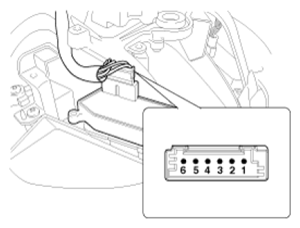

    Fig 1: Audio Remote Control Switch Connector End View (Trip & Reset)
    G07380866Courtesy of KIA MOTORS AMERICA, INC.
    CONNECTOR TERMINALS REFERENCE CHART

    Switch Connector terminal Resistance (±5%)
    Reset 3 - 5 (LH) 5.54 kΩ
    Trip 3 - 5 (LH) 2.54 kΩ

    Trip + Mute + Reset

    Fig 2: Audio Remote Control Switch Connector End View (Trip, Mute & Reset)
    G07380867Courtesy of KIA MOTORS AMERICA, INC.
    CONNECTOR TERMINALS REFERENCE CHART

    Switch Connector terminal Resistance (±5%)
    Mute 3-4 0 Ω
    Trip (General option) 2-5 2.55 kΩ
    Reset (General option) 2-5 5.55 kΩ
    Trip (Cruise option) 2-5 1.1 kΩ
    Reset (Cruise option) 2-5 4.1 kΩ

    Trip + ECO + Reset

    Fig 3: Audio Remote Control Switch Connector End View (Trip, ECO & Reset)
    G07380868Courtesy of KIA MOTORS AMERICA, INC.
    CONNECTOR TERMINALS REFERENCE CHART

    Switch Connector terminal Resistance (±5%)
    ECO 3-5 0 Ω
    Trip (General option) 2-5 2.55 kΩ
    Reset (General option) 2-5 5.55 kΩ
    Trip (Cruise option) 2-5 1.1 kΩ
    Reset (Cruise option) 2-5 4.1 kΩ
