Indicators & Gauges - Except HEV
>>
Instrument Cluster
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

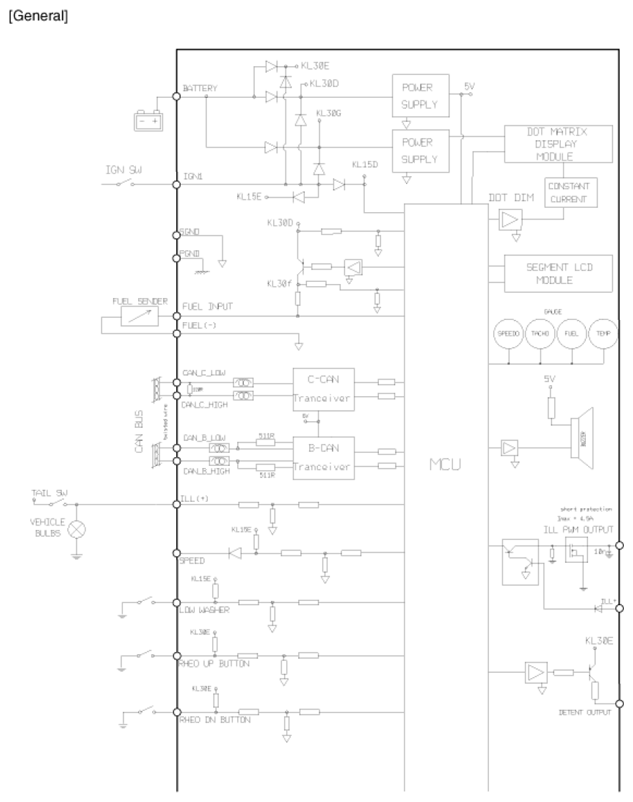

Fig 1: Instrument Cluster Circuit Diagram - General (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

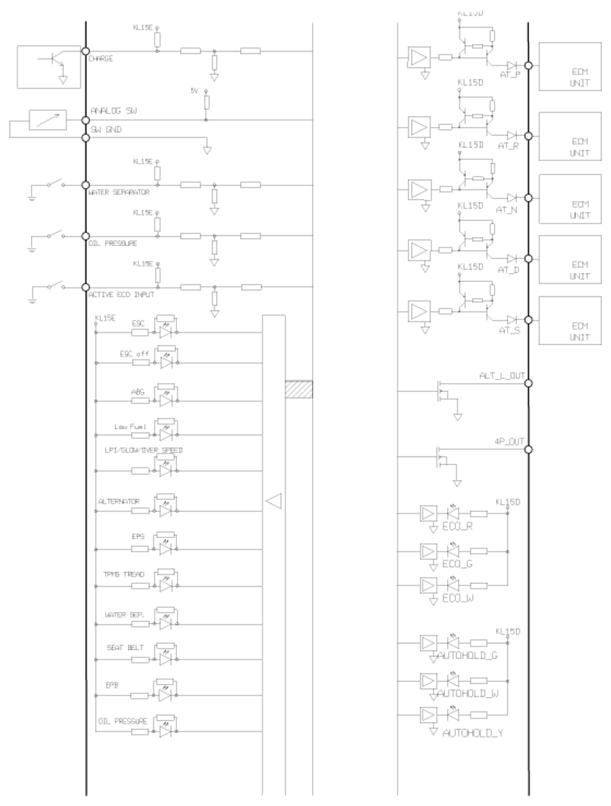

Fig 2: Instrument Cluster Circuit Diagram - General (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

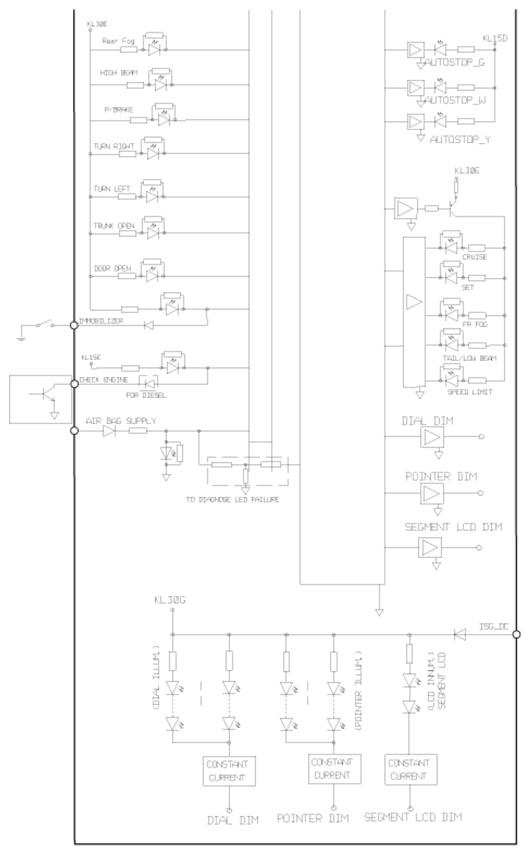

Fig 3: Instrument Cluster Circuit Diagram - General (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

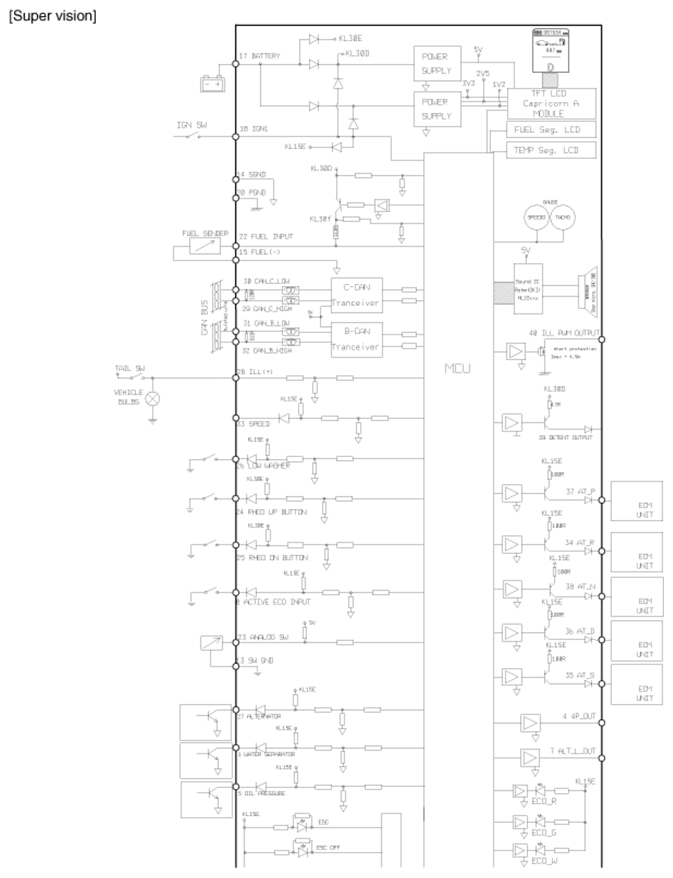

Fig 4: Instrument Cluster Circuit Diagram - Super Vision (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

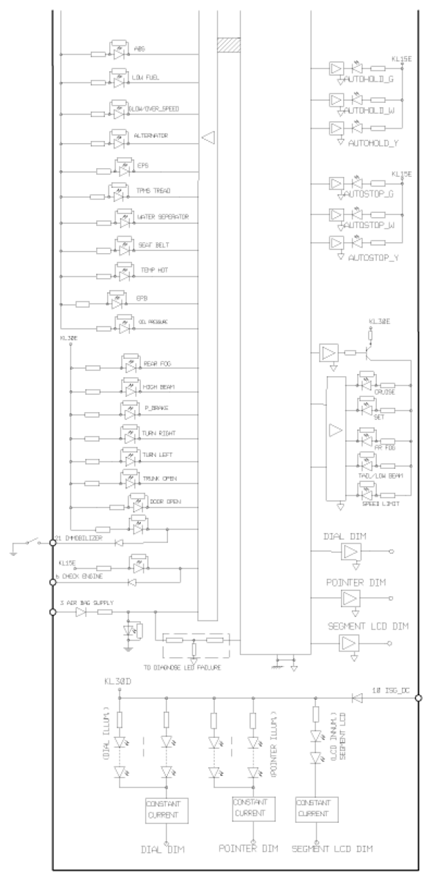

Fig 5: Instrument Cluster Circuit Diagram - Super Vision (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
